Měřicí stanice pro oblast organické elektroniky

ŠIMEK, V.; STŘÍTESKÝ, S.; WEITER, M.; RŮŽIČKA, R.

Originální název

Měřicí stanice pro oblast organické elektroniky

Anglický název

Measurement station for organic electronics

Druh

Funkční vzorek

Abstrakt

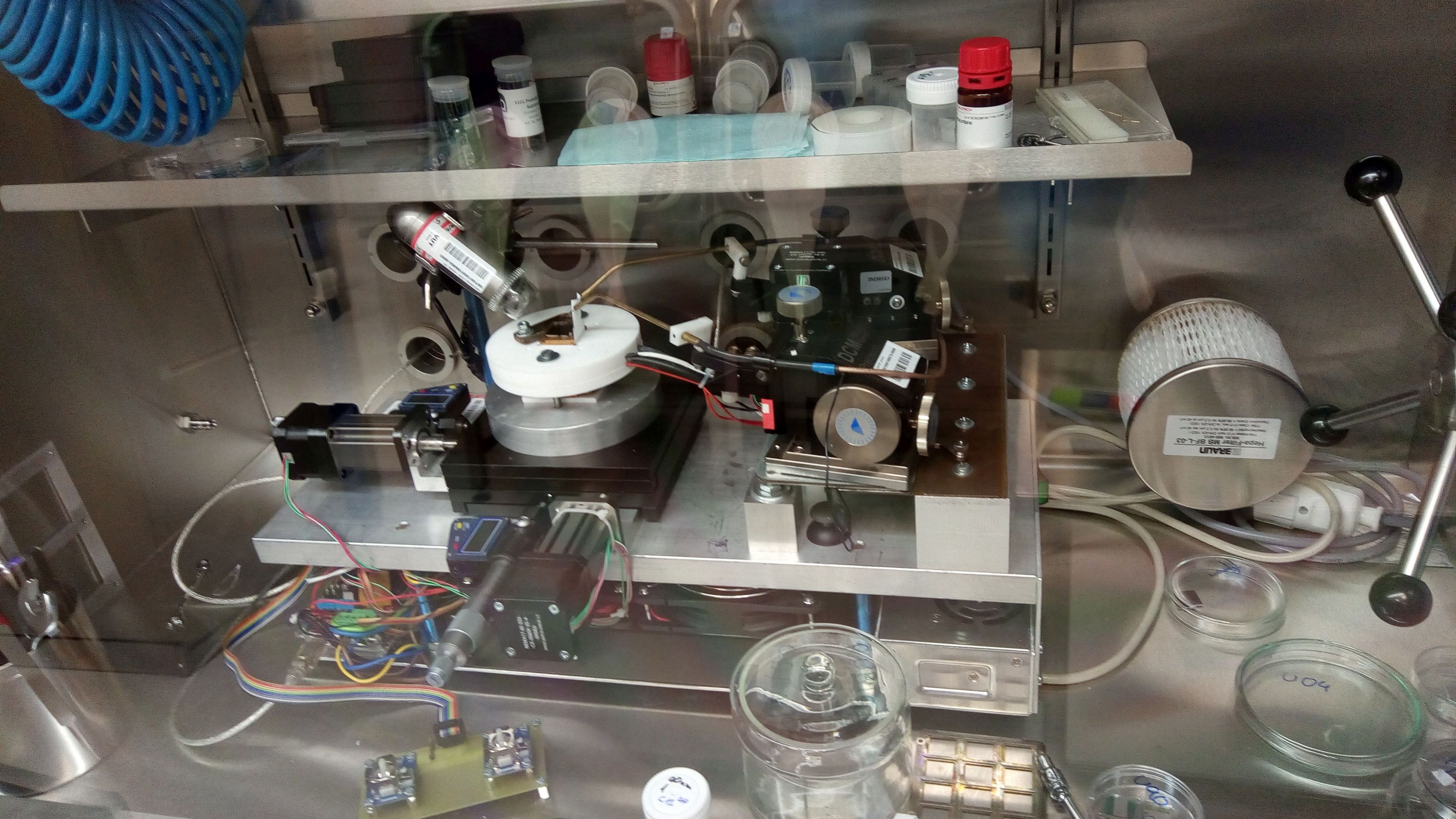

Pro usnadnění časově náročných měření a analýz elektrických parametrů obvodových prvků z oblasti organické elektroniky, kde se typicky pracuje s materiály velmi citlivými na atmosferické vlivy běžného ambientního prostředí, došlo ve spolupráci se skupinou profesora Weitera z FCH VUT v Brně ke zhotovení experimentální měřicí stanice. Za tímto účelem je stanice vybavena možností provádět měření v ochranné atmosféře.

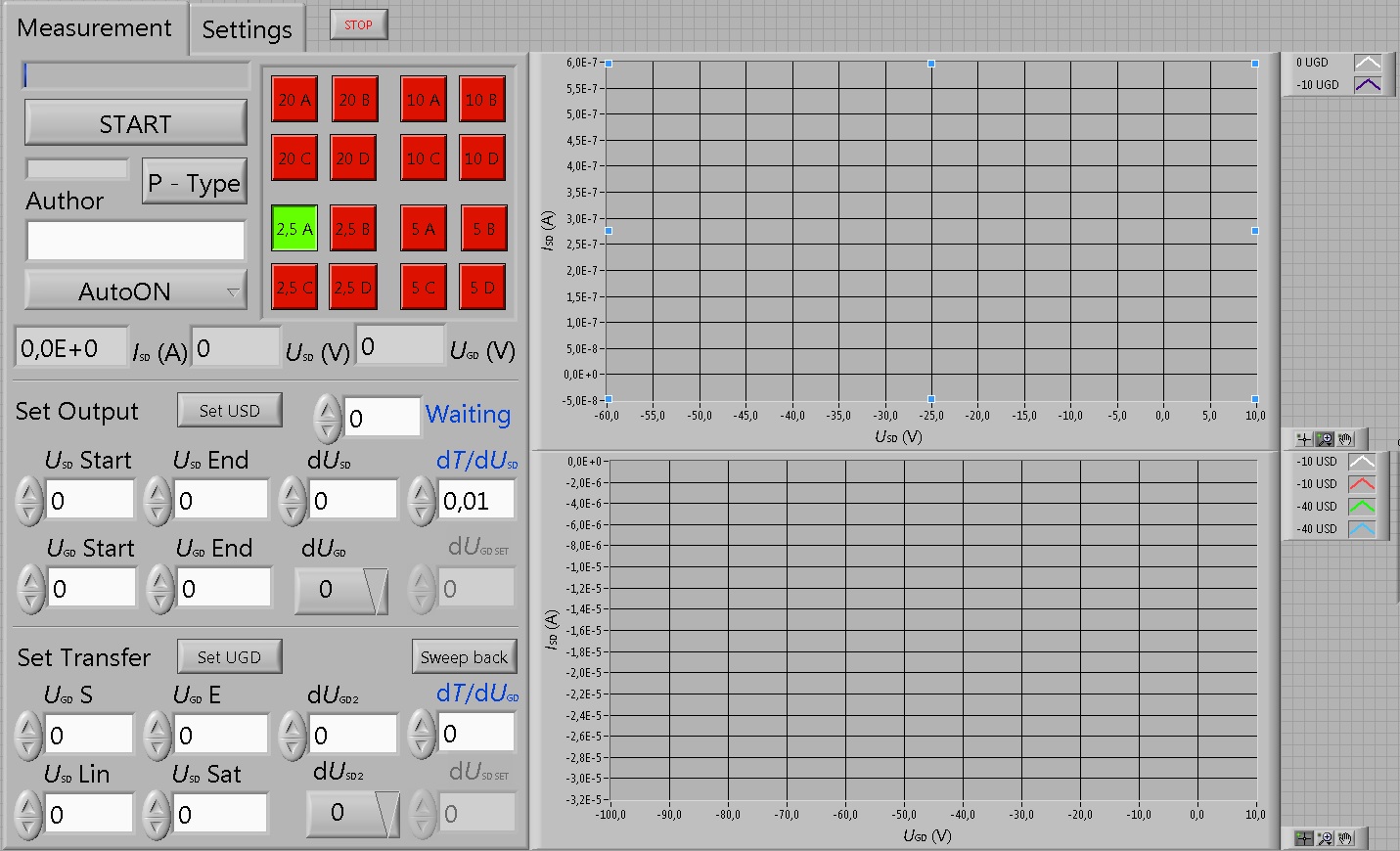

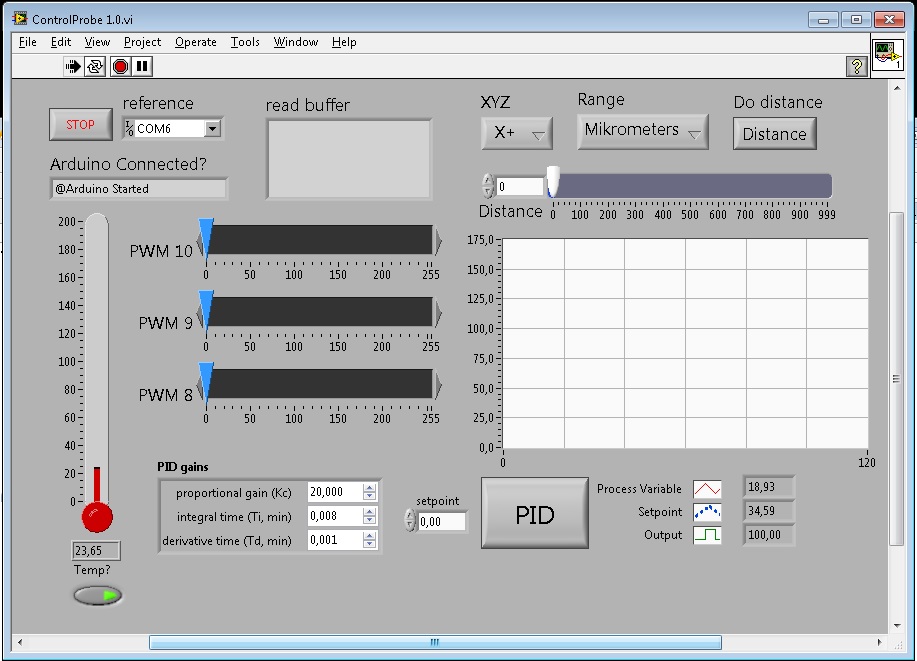

Dále je implementována i plná automatizace mnoha z potřebných úkonů včetně exportu a zpracování naměřených dat do tabulkové a grafické podoby. Kromě nezbytné elektroniky a hardwarových prvků byl k této aparatuře na bázi vývojového prostředí LabView implementován i systém, který umožňuje i vzdálené ovládání stanice bez nutnosti osobní přítomnosti v čistých laboratorních prostorách, kde je tato sestava umístěna. Takto je možno velmi efektivně provádět potřebná měření.

Abstrakt aglicky

In order to facilitate the execution of various time-demanding measurement and parameters analyses of circuit elements within the domain of organic electronics, where the materials exhibiting high sensitivity to the impact of ambient environment are commonly used, experimental measurement station was designed and physically constructed as a joint collaboration with the research team of prof. Weiter from FCH at Brno University of Technology. With the suggested target applications in mind the measurement station itself is offering the opportunity to perform the necessary measurement in protective atmosphere.

Furthermore, there was also implemented a substantial automation of particular tasks including the export of obtained data in a form of tabular or graphical representation. Besides the low-level control electronics and hardware elements of the resulting setup important feature of the measurement station is given by the availability of system created in LabView environment, which allow the users to control the measurement station in a remote way without the need of personal presence in clean room halls, where the station is situated. This aspects significantly contributes to the efficient way of performing the whole range of various relevant tasks.

Klíčová slova

Organic electronics, measurement station, controlled environment, embedded system, remote access, automation, LabView.

Klíčová slova anglicky

Organic electronics, measurement station, controlled environment, embedded system, remote access, automation, LabView.

Umístění

Ústav fyzikální a spotřební chemie, Fakulta chemická VUT v Brně, Purkyňova 118, 612 00 Brno
